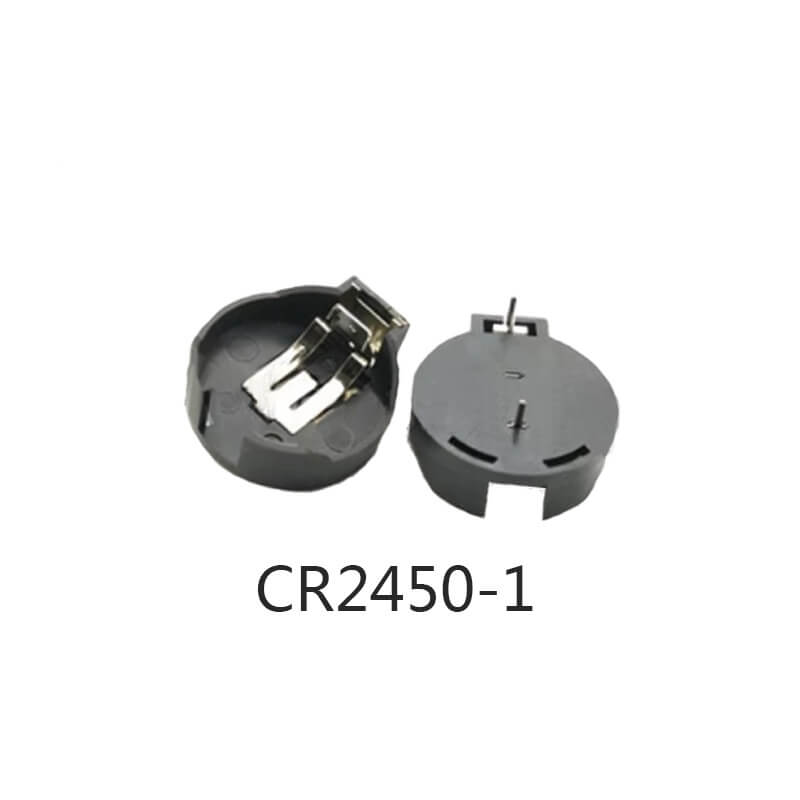

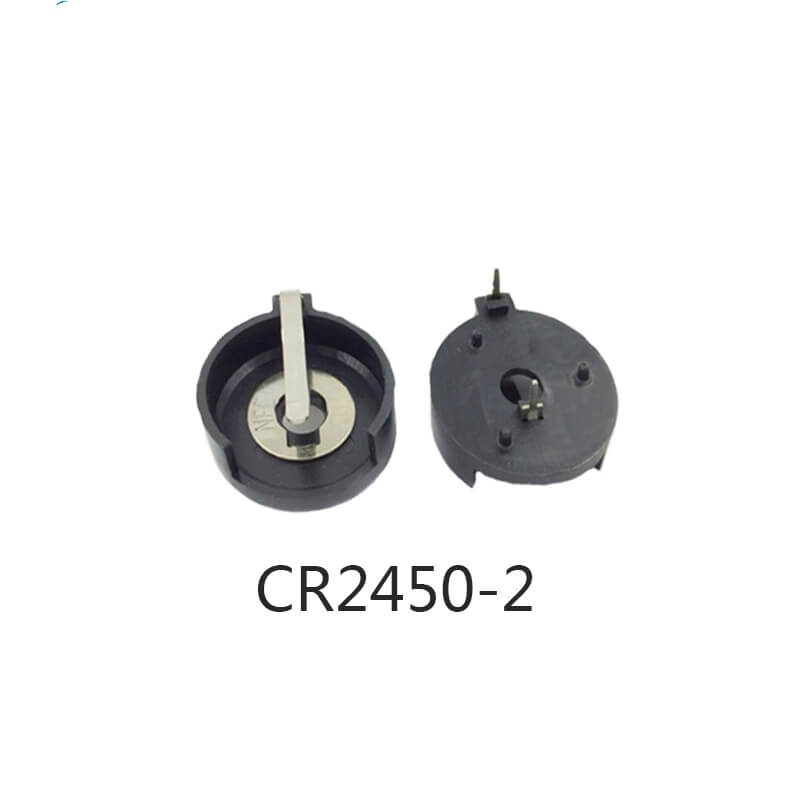

Battery Holder for Cr2450
1, Battery Holder for CR2450
2, Type: BS-2450-SMT
3, Material:
a, Housing: PBT
b, Contact : Phosphor Bronze
c, Surface Plating: Ni100u- Ni120u
4,Electric:
a. Contact Resistance: 30 Milliohms Max
b. Insulation Resistance: 1000 Mega Ohms Min
c. Dielectric Voltage: 500V AC one sec level
d. Operating Temperature: -25ºC – 85ºC
5, Suitable for : Computer Memory, Power transfer, Communications Power System, PC Application, Armamentarium, Motherboard
6,Packing: 200pieces/ box, 2000 pieces/Carton,
G.W:7.7KGS, N.W:5.8KGS, Size: 33*28.5*45CM
