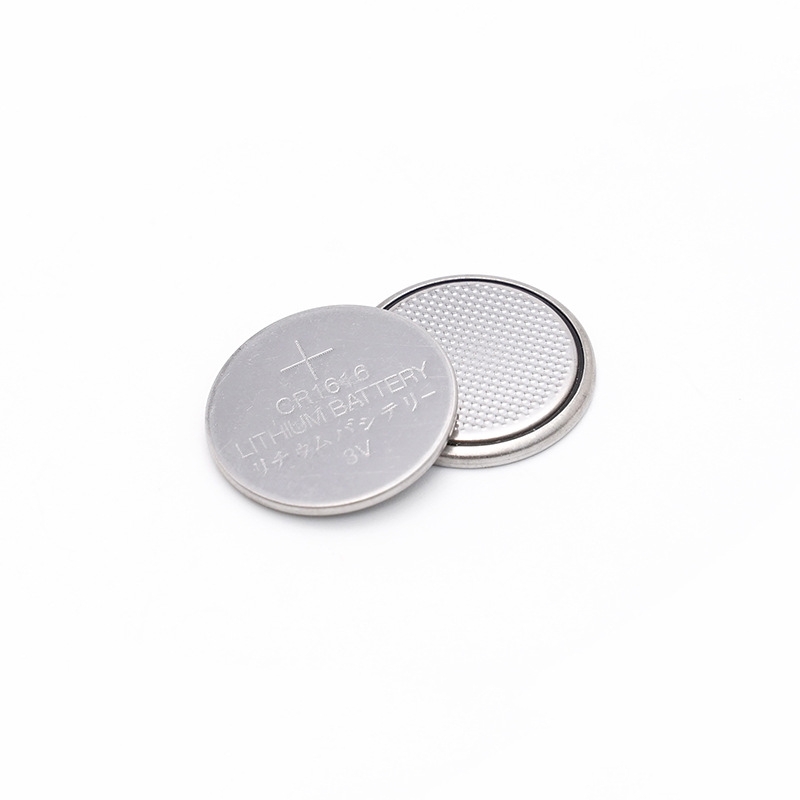

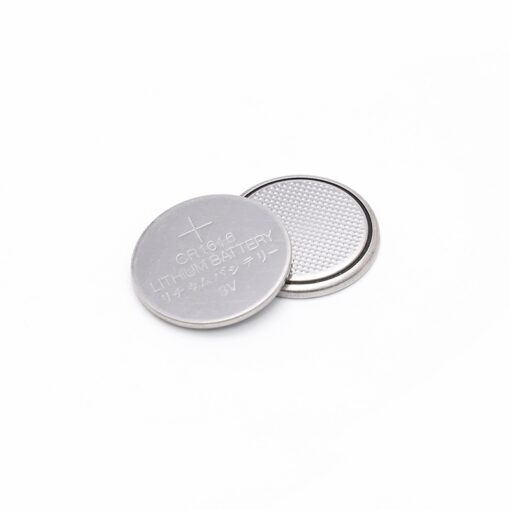

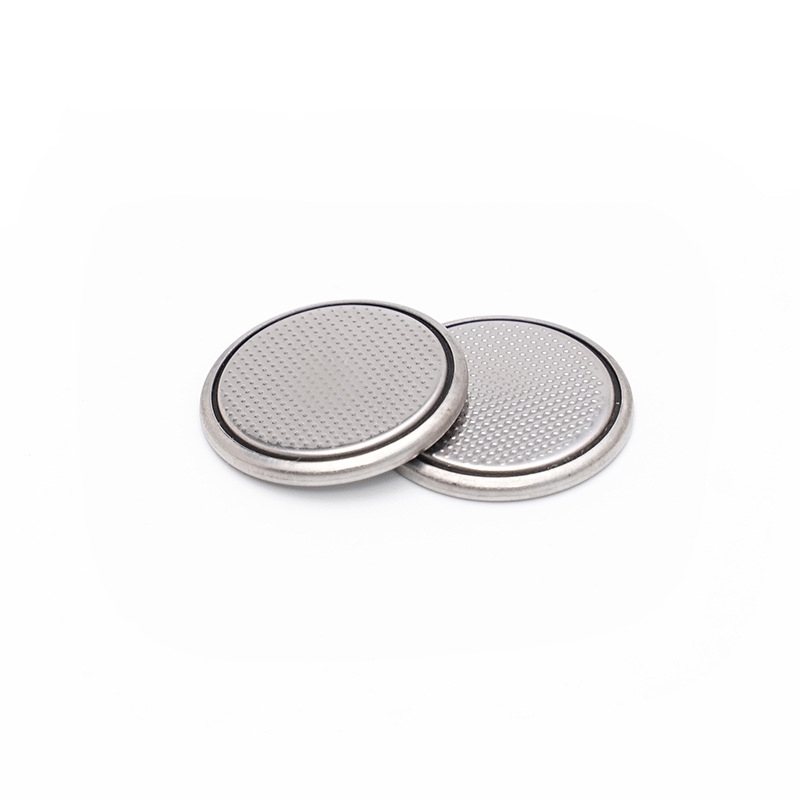

CR1616 Lithium Button Battery

1.Nominal Voltage : 3.0V

2.Nominal Capacity: 50mAh

Condition：Continuous discharge at 20±2℃ under load 30kΩ for 24 hrs/day to EPV 2.0V

3. Off-load Voltage: ≥3.2V

Acceptance Standard：MIL-STD-105E, Class Π，Double Sampling，AQL=0.4

4.Temperature Range: -30~70℃

5.Average Weight: 1.0g

6.Chemical System: Li/MnO
7.Battery Dimensions: Φ=15.7~16.0mm H=1.4~1.7mm

1. Memory power for Notebook PC,CMOS
2. Main power for electronical products
3. Watch,Remote Controller, flashing products etc.

Advantage
1. High-voltage and High Capacity
2. Wide working temperature range
3. Stable discharge voltage
4. Excellent safety performance
5. Excellent discharge stability
6. Superior storage characteristics
7. Low self-discharge rate
