CR1620 Button Battery

1.Model：CR1620

2. Nominal Voltage: 3.0V

3. Nominal Capacity: 75mAh

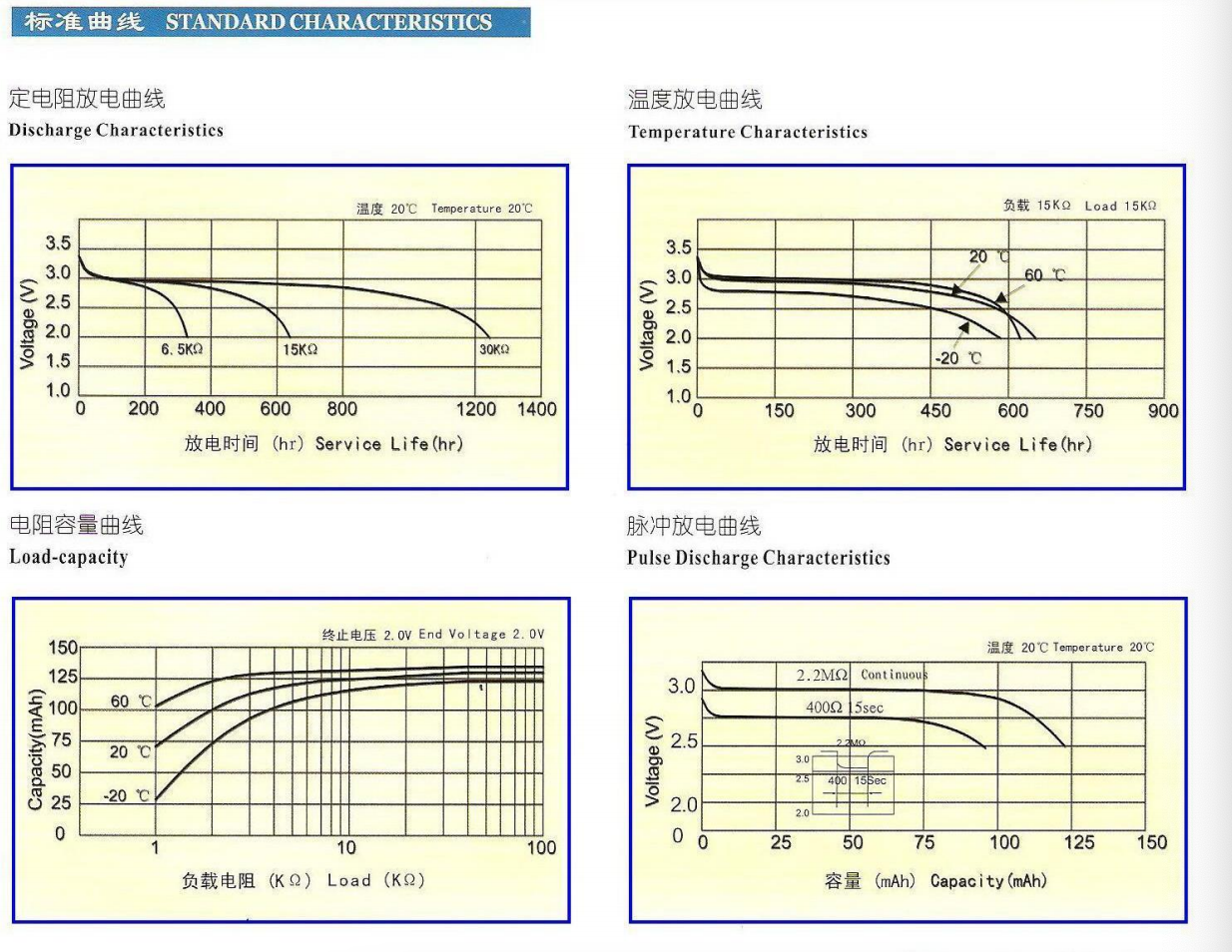

Condition：Continuous discharge at 20±2℃ under load 30kΩ for 24 hrs/day to EPV 2.0V

4. Off-load Voltage: ≥3.2V

Acceptance Standard：MIL-STD-105E, Class Π，Double Sampling，AQL=0.4

5. Temperature Range: -40~80℃

6. Average Weight: 1.2g

7. Chemical System: Li/MnO2

8. Battery Dimensions: Φ=15.7~16.0mm H=2.9~3.3mm

Advantage
1. High-voltage and High Capacity
2. Wide working temperature range
3. Stable discharge voltage
4. Excellent safety performance
5. Excellent discharge stability
6. Superior storage characteristics
7. Low self-discharge rate
